Description

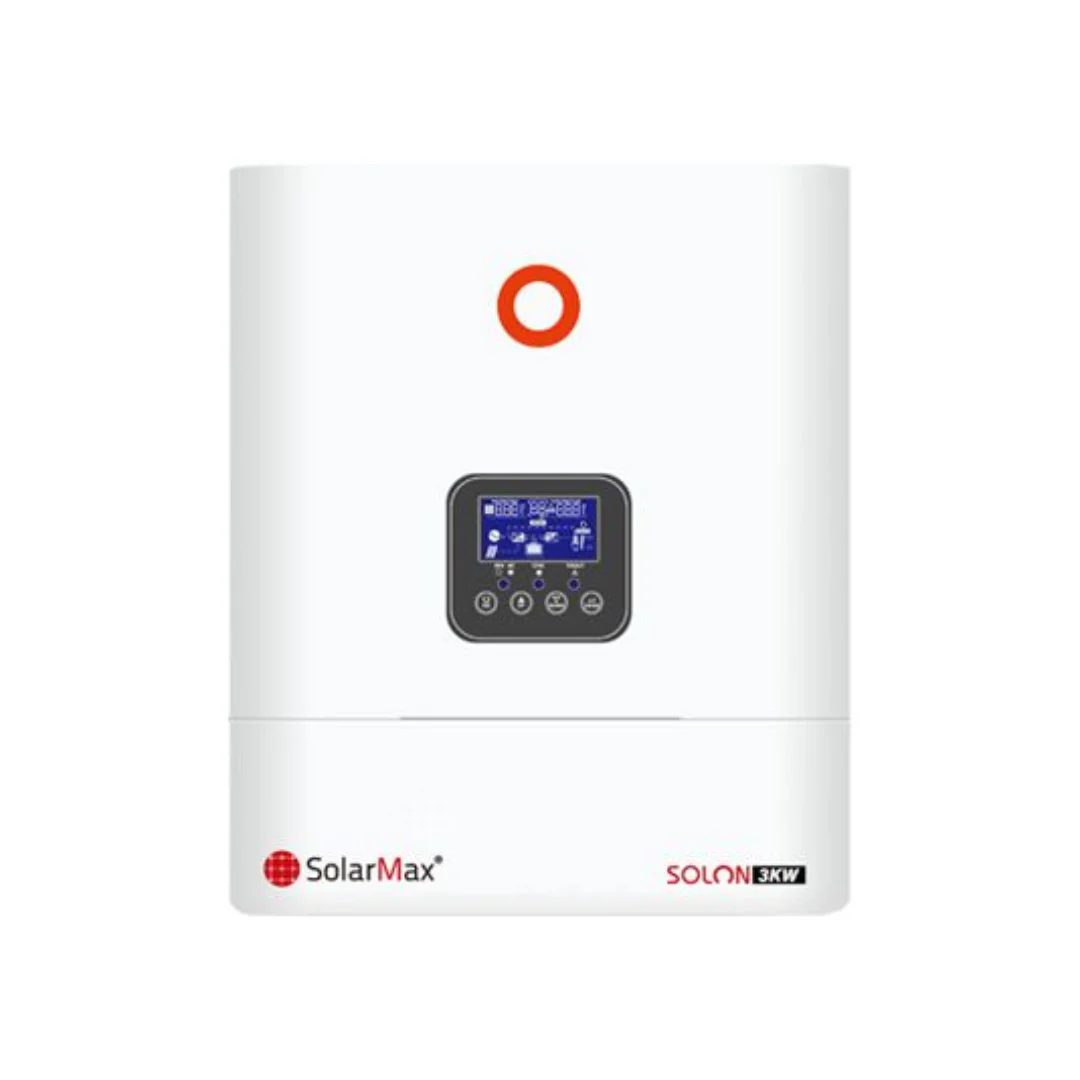

SolarMax 2024 New Solon Series 3KW (3000W) OFF-GRID Inverter with 4KW MPPT PV Input
The SolarMax Solon 3KW is an advanced off-grid inverter designed to provide reliable power for various applications. With its pure sine wave output and high-efficiency MPPT solar charge controller, this inverter can support home appliances and small solar systems, functioning with or without a battery. It provides up to 3KW of continuous output and is optimized for efficient energy management.
Key Features
- Pure Sine Wave Output: Ensures clean, stable electricity suitable for sensitive devices, offering a reliable power supply for your home or appliances.
- Built-in MPPT Solar Charge Controller: Maximizes energy conversion with a 4KW input capacity, providing up to 80A charging current for efficient battery management.
- Wide PV Input Range (60V ~ 450V DC): Flexible configuration options for solar panel selection, accommodating various setups.
- AC Voltage Regulation (Battery Mode): 230VAC ± 5%, ensuring a stable output for different applications.
- Surge Power (6000VA): Capable of handling large loads during power surges without compromising system performance.
- Battery Compatibility: Designed to work with 24V batteries, offering efficient charge management and protection with overcharge and undervoltage safeguards.
- Built-in Wifi & RS485 Communication Interface: Enables easy remote monitoring and control through a mobile app or BMS integration for lithium batteries.
- Efficient Operation with Low Power Loss: Features a maximum efficiency of 98%, ensuring minimal energy waste for optimal system performance.
The SolarMax Solon 3KW inverter is ideal for off-grid applications that require high efficiency, reliability, and flexibility. It provides optimal power conversion, monitoring, and control for a seamless solar energy experience.
| MODEL | SM-SOLON-3KW |
| RATED POWER | 3000W |
| INPUT | |
| Voltage | 230 VAC |
| Selectable Voltage Range | 90-280 VAC (For Home Appliances) |
| Frequency Range | 50 Hz/60 Hz (Auto sensing) |
| OUTPUT | |
| AC Voltage Regulation (Batt. Mode) | 230 VAC ± 5% |
| Surge Power | 6000 VA |
| Waveform | Pure Sine Wave |
| Transfer Time | 10 ms (For Computers), 20 ms (For Home Appliances) |
| AC Output | 3000W |
| BATTERY & AC CHARGER | |
| Battery Voltage | 24 VDC |
| Floating Charge Voltage | 27 VDC |
| Overcharge Protection | 30 VDC |
| Maximum Charge Current | 80 A |
| SOLAR MPPT CHARGE CONTROLLER | |
| Maximum PV Array Open Circuit Voltage | 500 VDC |
| Maximum PV Array Power | 4000W |
| Maximum PV Input Current | 18A |
| MPPT Range @Operating Voltage | 60-450 VDC |
| Maximum Charging Current | 80A |
| Maximum Efficiency | 98% |
| INTERFACE | |
| Communication Interface | Built-in Wifi, RS485 (BMS Compatible with lithium battery using RS-485) |
| Display | LCD |
| OPERATING ENVIRONMENT | |
| Humidity | 5% to 90% Relative Humidity (Non-condensing) |
| Operating Temperature | 0°C -55°C |
| Storage Temperature | -15° C to 60° C |
| PHYSICAL | |
| Dimension, D x W x H (mm) | 128 x 300 x 363 |
| Net Weight (kgs) | 6.3KG |
Note : (Two Year parts replacement warranty)
