Description

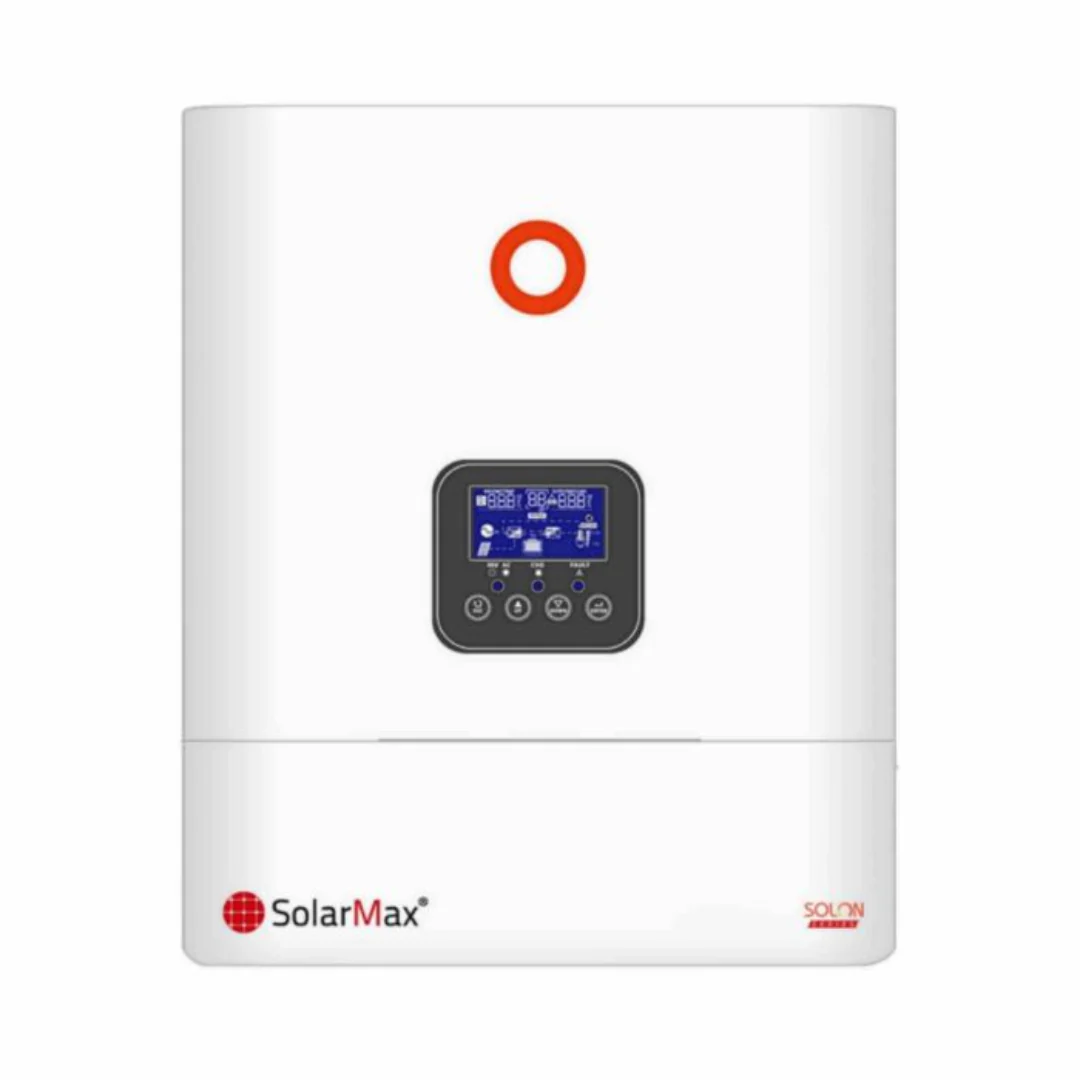

SolarMax 2024 New Solon Series 1.5KW (1500W) OFF-GRID Inverter with 3KW MPPT PV Input
The SolarMax Solon 1.5KW is an off-grid inverter designed for small solar systems. With a pure sine wave output and an advanced MPPT charge controller, it delivers reliable power to home appliances and devices. This inverter operates efficiently with or without a battery, making it suitable for various off-grid applications.
Key Features
- Pure Sine Wave Output: Provides clean, stable electricity that is ideal for sensitive devices, ensuring reliable performance for both computers and home appliances.
- Built-in MPPT Solar Charge Controller: Optimizes solar energy conversion, supporting up to 3KW of input and delivering up to 80A of charging current for efficient power management.
- Flexible PV Input Range (60V ~ 450V DC): Offers compatibility with a wide range of solar panel setups, allowing for greater flexibility in solar installations.
- AC Voltage Regulation (Battery Mode): 230VAC ± 5%, ensuring consistent and stable output for your systems.
- Surge Power (3000VA): Handles power surges efficiently, making it suitable for large appliances or devices that require temporary high power.
- Battery Compatibility: Works with 12V batteries, offering efficient charging with protections for overcharge and undervoltage conditions.
- Built-in Wifi & RS485 Communication Interface: Allows for easy remote monitoring and control through mobile devices and BMS integration with lithium batteries.
- High Efficiency: With a maximum efficiency of 98%, the inverter minimizes energy loss, optimizing solar power use.
The SolarMax Solon 1.5KW inverter is perfect for smaller off-grid applications that require reliable, efficient power conversion, as well as convenient remote monitoring and control features.
| MODEL | SM-SOLON-1.5KW |
| RATED POWER | 1500W |
| INPUT | |
| Voltage | 230 VAC |
| Selectable Voltage Range | 90-280 VAC (For Home Appliances) |
| Frequency Range | 50 Hz/60 Hz (Auto sensing) |
| OUTPUT | |
| AC Voltage Regulation (Batt. Mode) | 230 VAC ± 5% |
| Surge Power | 3000 VA |
| Waveform | Pure Sine Wave |
| Transfer Time | 10 ms (For Computers), 20 ms (For Home Appliances) |
| AC Output | 1500W |
| BATTERY & AC CHARGER | |
| Battery Voltage | 12 VDC |
| Floating Charge Voltage | 13.5 VDC |
| Overcharge Protection | 15 VDC |
| Maximum Charge Current | 80 A |
| SOLAR MPPT CHARGE CONTROLLER | |
| Maximum PV Array Open Circuit Voltage | 500 VDC |
| Maximum PV Array Power | 3000W |
| Maximum PV Input Current | 18A |
| MPPT Range @Operating Voltage | 60-450 VDC |
| Maximum Charging Current | 80A |
| Maximum Efficiency | 98% |
| INTERFACE | |
| Communication Interface | Built-in Wifi, RS485 (BMS Compatible with lithium battery using RS-485) |
| Display | LCD |
| OPERATING ENVIRONMENT | |
| Humidity | 5% to 90% Relative Humidity (Non-condensing) |
| Operating Temperature | 0°C – 55°C |
| Storage Temperature | -15° C to 60° C |
| PHYSICAL | |
| Dimension, D x W x H (mm) | 128 x 300 x 363 |
| Net Weight (kgs) | 6.1KG |
Note : (Two Year parts replacement warranty)
