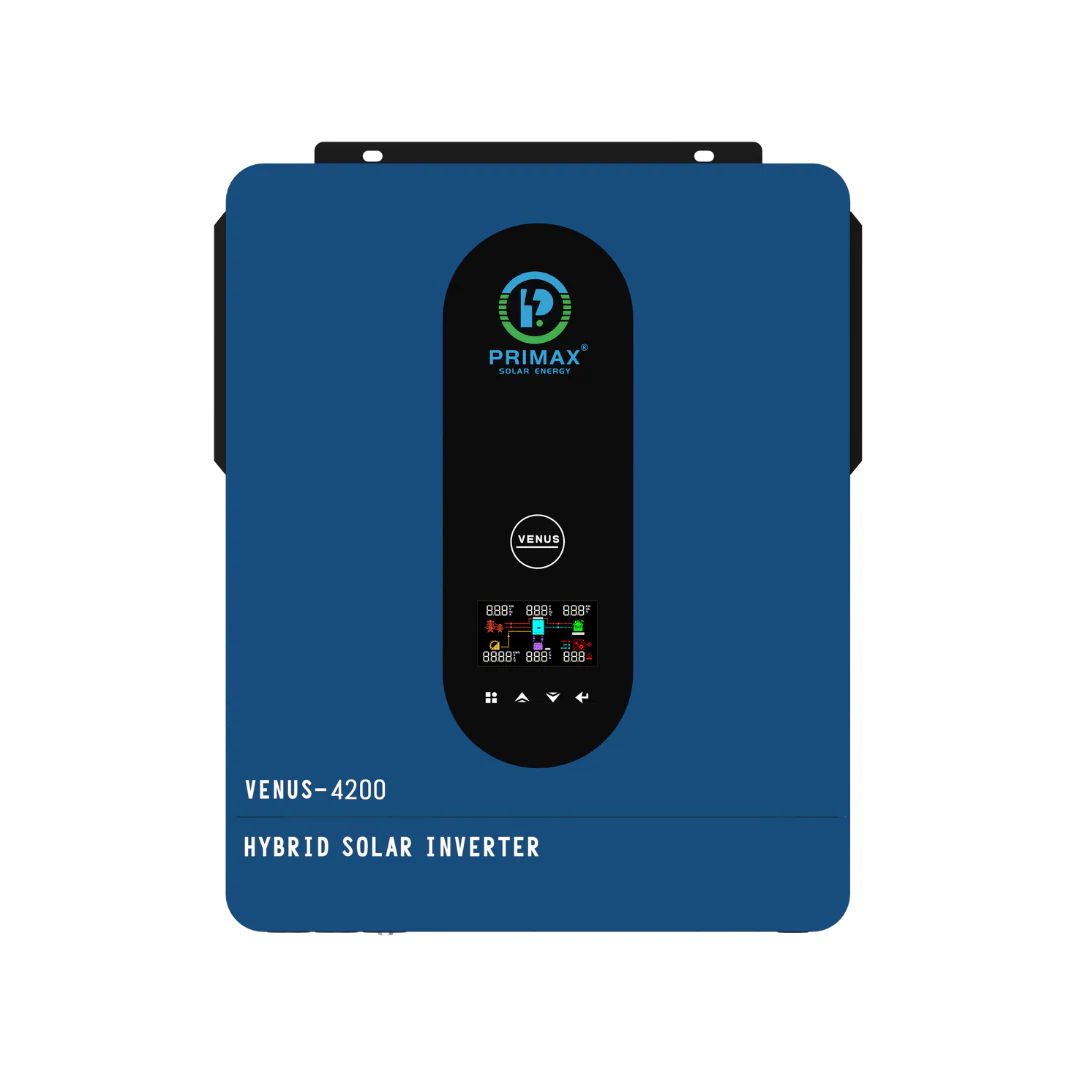

PRIMAX VENUS 4200 Hybrid Solar Inverter 4200W 24V MPPT 2024
A compact and efficient hybrid solar inverter designed for both on-grid and off-grid use. This model features advanced energy management and communication capabilities, making it suitable for various residential and small commercial applications.
Key Features
- Inverter Can Be Run Without Battery
- Pure Sine Wave Output: Provides stable, high-quality power for sensitive electronic devices and appliances.
- Output Power Factor 1.0: Ensures efficient energy distribution and use within the system.
- Wi-Fi & GPRS: Available for mobile monitoring through iOS and Android apps, enabling real-time system management.
- Battery-Independent Operation: Can function without a battery, offering flexibility for different system requirements.
- One-Key Restoration: Easily restore factory settings with a simple one-key process, facilitating troubleshooting.
- Lithium Battery Automatic Activation: Built-in system that supports smooth and easy integration of lithium batteries.
- 120A MPPT Solar Charge Controller: Maximum 4,200W solar input (6200W max for larger setups), ensuring high-efficiency energy capture.
- High PV Input Voltage Range: Compatible with panels within a voltage range of 60V ~ 500V DC, suitable for a wide range of installations.
- Built-in Anti-Dust Kit: Designed to operate efficiently in harsh environments, offering increased durability.
- Smart Battery Charge Optimization: Ensures the lifespan of the battery is extended through intelligent charging strategies.
- Dual Output: Smart load management to handle multiple systems or appliances, allowing for versatile use.
The PRIMAX VENUS 4200 hybrid Solar Inverter combines advanced power management features with flexible integration options, making it an ideal choice for energy-efficient homes and small-scale businesses.
| Phase | 1-Phase |
| Maximum PV Input Power | 6200W |
| Rated Output Power | 4200W |
| Maximum Solar Charging Current | 120A |
| GRID-TIE OPERATION | |
| PV Input (DC) | |
| Nominal DC Voltage/Maximum DC Voltage | 360VDC/500VDC |
| Start-up Voltage/Initial Feeding Voltage | 60VDC/90VDC |
| MPPT Voltage Range | 60VDC-450VDC |
| Number of MPPT Trackers/Maximum Input Current | 1/18A |
| GRID OUTPUT(AC) | |
| Nominal Output Voltage | 220/230/240VAC |
| Output Voltage Range | 195.5-253VAC |
| Nominal Output Current | 18.2A |
| Power Factor | >0.99 |
| Feed-in Grid Frequency Range | 49-51+1Hz |
| EFFICIENCY | |
| Maximum Conversion Efficiency(DC/AC) | 98% |
| TWO-LOAD OUTPUT POWER | |
| Full Load | 4200W |
| Maximum Main Load | 4200W |
| Maximum Second Load(Battery mode) | 1400W |
| Main Load Cut-Off Voltage | 22VDC |
| Main Load Return Voltage | 26VDC |
| OFF-GRID OPERATION AC INPUT | |
| AC Start-up Voltage/Auto Restart Voltage | 120-140VAC/180VAC |
| Acceptable Input Voltage Range | 90-280VAC or 170-280VAC |
| Maximum AC Input Current | 30A |
| Nominal operating frequency | 50/60Hz |
| Surge Power | 8400W |
| BATTERY MODE OUTPUT (AC) | |
| Nominal Output Voltage | 220/230/240VAC |
| Output Waveform | Pure sine wave |
| Efficiency(DC to AC) | 94% |
| BATTERY & CHARGER | |
| Nominal DC Voltage | 24VDC |
| Maximum Solar Charging Current | 120A |
| Maximum AC Charging Current | 100A |
| GENERAL | |
| PHYSICAL | |
| Dimension, D X W X H(mm) | 420*310*110 |
| Cartoon Dimension, D X W X H(mm) | 500*410*190 |
| Net Weight(kgs) | 8.5 |
| Gross Weight(kgs) | 9.5 |
| INTERFACE | |
| Communication Port | RS232/WIFI/GPRS/LITHIUM |
| BATTERY |
