Description

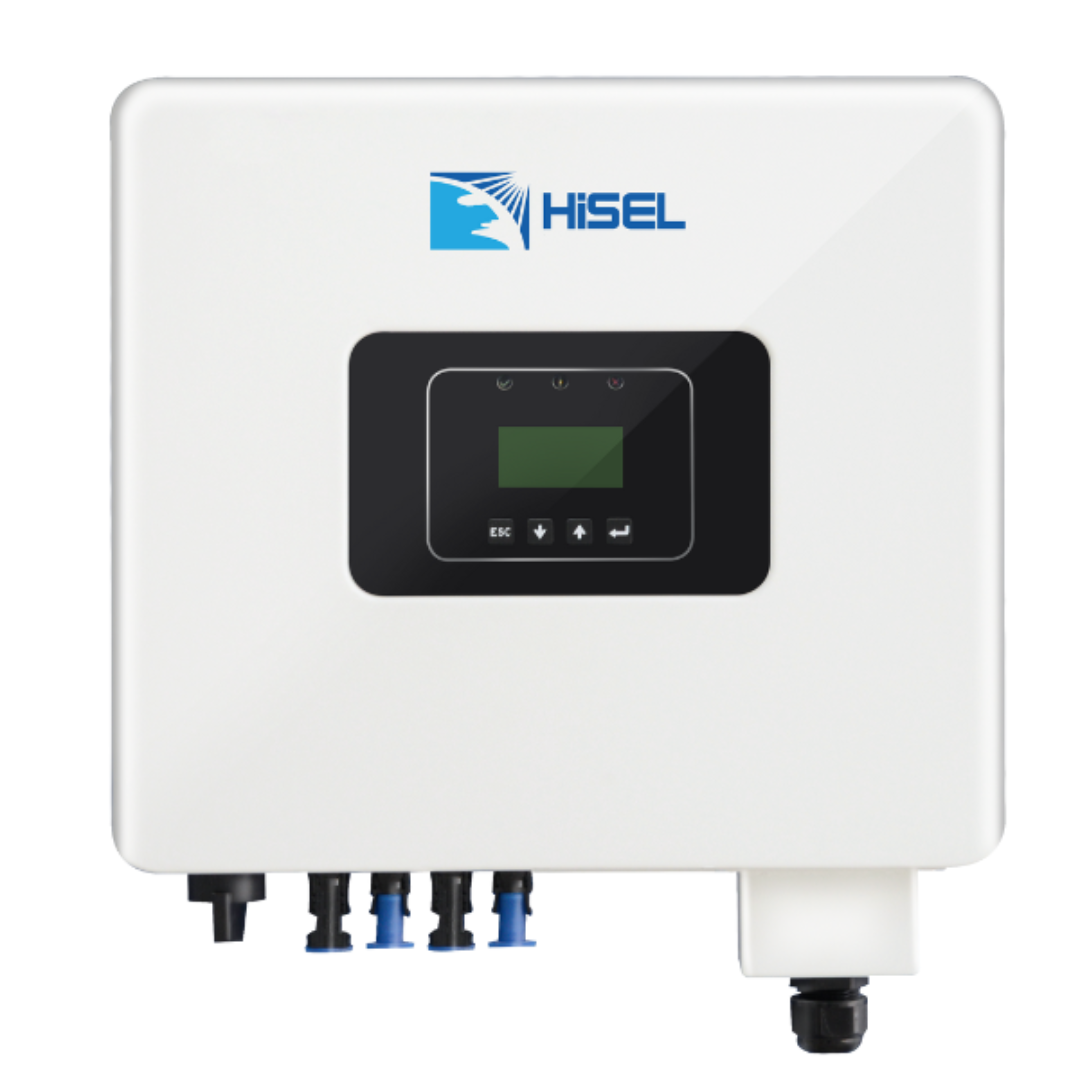

Three Phase On-Grid Inverter SI-10K-T2
The SI-10K-T2 Three Phase On-Grid Inverter is a high-performance solution for efficient and reliable energy conversion in solar systems. With advanced features like dual MPPT, high PV input voltage, and intelligent cooling, it ensures maximum energy generation and long-lasting durability for commercial and industrial applications.
Key Features
- LED Display with Button Design: Enables direct and user-friendly data viewing and operation.
- Maximum Efficiency (98.2%): Ensures optimal energy conversion for higher power generation.
- Dual MPPT Technology: Enhances energy harvesting from multiple PV arrays for increased output.
- High Photovoltaic Input (Up to 1100V): Supports a wide range of PV configurations for greater flexibility.
- 14A String Current: Compatible with high-current, high-efficiency solar modules.
- 130% DC Over-Configuration: Accommodates additional DC capacity for higher energy production.
- 110% AC Overload Output: Provides increased output capacity during peak loads.
- Intelligent Fan Cooling: Maintains optimal operating temperatures for enhanced reliability and efficiency.
- Highly Protective Shell Design: Heat and corrosion-resistant enclosure ensures durability and 25 years of rust-free performance.
- Intelligent Remote Monitoring: Allows for real-time performance tracking and management from a remote location.
Specifications
| Technical Data | SI-10K-T2 |
| Input Data | |
| Max. DC input power | 13000W |
| Max. DC input voltage | 1100V |
| Operation voltage range | 200V-1000V |
| Number of independent MPPT/ strings per MPPT | 2/1 |
| MPPT max. Current | 14A/14A |
| AC Output Data | |
| Rated output power | 10000W |
| Max. output power | 11000W |
| Rated output voltage | 400V/320V-460V |
| Rated output frequency | 50Hz/60Hz |
| Rated output current | 14.5A |
| Max. output current | 16A |
| Power factor | -0.8 +0.8(adjustable) |
| THDI | <3% (Nominal Output) |
| Grid system pattern | 3W+N+PE |
| Efficiency | |
| Max. efficiency | 98.2% |
| Europe efficiency | 98% |
| Protection | |
| Input DC switch | Yes |
| Input over current protection | Yes |
| DC reverse polarity protection | Yes |
| Output over voltage protection | Yes |
| Output over current protection | Yes |
| Anti islanding protection | Yes |
| AC surge protection | Yes |
| DC surge protection | Yes |
| Insulation impedance protection | Yes |
| RCD detection | Yes |
| General Data | |
| Dimensions (L/W/H) in mm | 403/192/360 |
| Weight | 15kg |
| Noise | <30dB |
| Operation temperature range | -25°C~60°C |
| Heat dissipation mode | Natural |
| IP Class | IP65 |
| Maximum altitude | 4000m |
| Self-Consumption night | <3w |
| Topology | Transformer less |
| Features | |
| LCD display | Yes |
| Communication interface | WIFI/4G/GPRS/RS485(optional) |
| Warranty | 5 years (standard) |
The SI-10K-T2 inverter is an ideal choice for large-scale solar installations, offering exceptional efficiency, robust design, and intelligent monitoring for reliable and sustainable energy solutions.
