Description

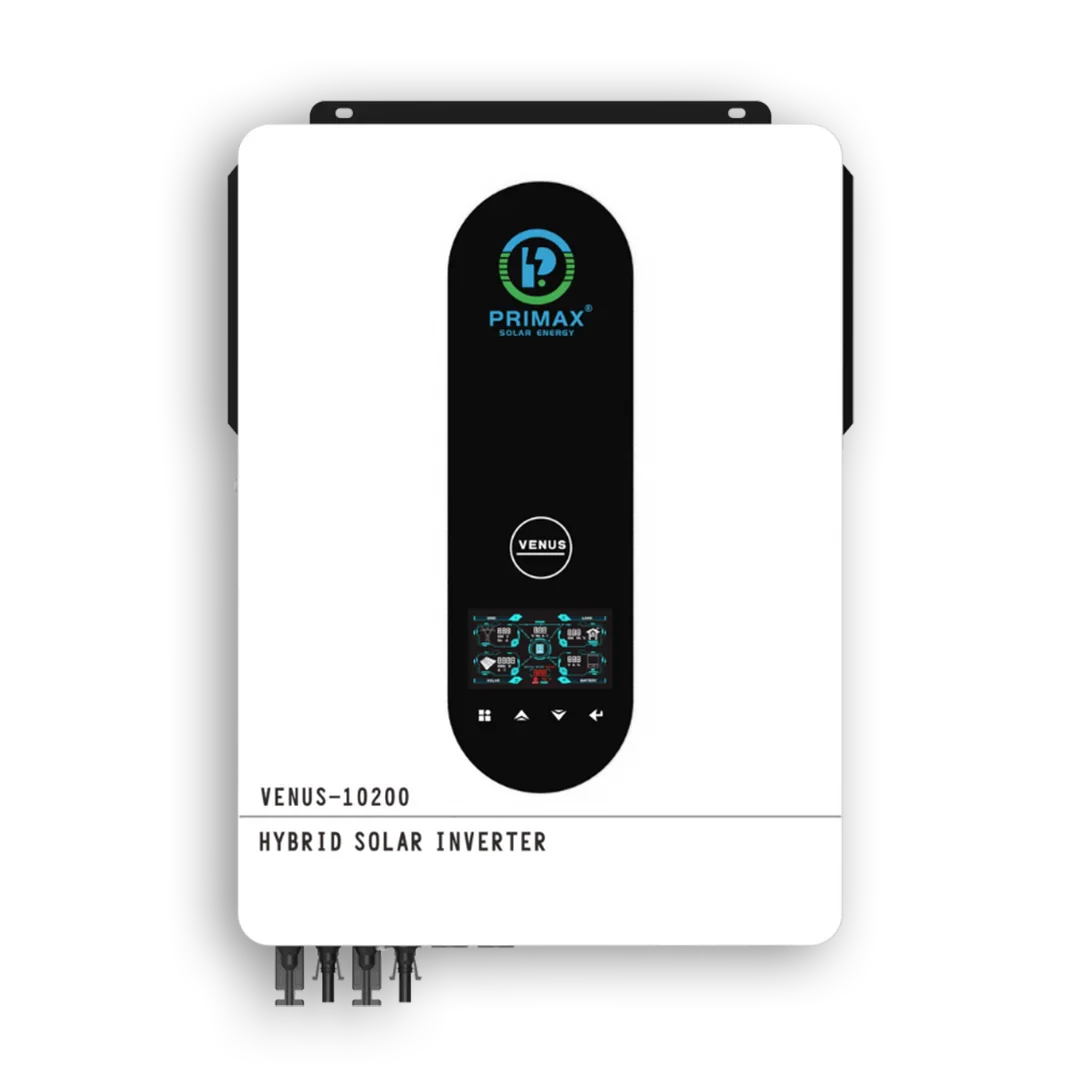

PRIMAX VENUS 10200 Hybrid Solar Inverter 10.2KW (2024 Model)
An advanced hybrid solar inverter designed for efficient energy management in both on-grid and off-grid applications. Combining power, reliability, and smart features, it is an excellent choice for modern energy systems.
Key Features
- Pure Sine Wave Inverter: Suitable for sensitive electronics and appliances.
- Dual Functionality: Operates in both on-grid and off-grid modes.
- High Output Efficiency: Power factor of 1.0 for optimal energy usage.
- Battery-Free Operation: Capable of running without a battery for cost-effective installation.
- Smart Battery Management: Features built-in automatic Lithium battery activation and a design to optimize battery life.
- High PV Input Capacity: Dual PV input supports up to 12,200W (6,100W x 2), with a wide input voltage range of 90-500V DC.
- Powerful MPPT Charger: Built-in 160A MPPT for maximum solar power utilization.
- User-Friendly Design: Equipped with touch buttons for ease of operation and one-key factory reset functionality.
- WIFI & GPRS Connectivity: Monitor and control through iOS and Android apps.
- Durability for Harsh Environments: Comes with a built-in anti-dust kit.
- Dual Output: Enables power distribution to multiple systems simultaneously.
The PRIMAX VENUS 10200 is an intelligent and robust solution for large-scale residential and commercial solar installations.
Specifications:
| Phase | 1-Phase |
| Maximum PV Input Power | 6100W x 2 (12200W) |
| Rated Output Power | 10200W/10200VA |
| Maximum Solar Charging Current | 160A |
| GRID-TIE OPERATION | |
| PV Input (DC) | |
| Nominal DC Voltage/Maximum DC Voltage | 360VDC/500VDC |
| Start-up Voltage/Initial Feeding Voltage | 90VDC/120VDC |
| MPPT Voltage Range | 90VDC-450VDC |
| Number of MPPT Trackers/Maximum Input Current | 2/18A |
| GRID OUTPUT(AC) | |
| Nominal Output Voltage | 220/230/240VAC |
| Output Voltage Range | 195-253VAC |
| Nominal Output Current | 44.3A |
| Power Factor | >0.99 |
| Feed-in Grid Frequency Range | 49-51+1Hz |
| EFFICIENCY | |
| Maximum Conversion Efficiency(DC/AC) | 98% |
| TWO-LOAD OUTPUT POWER | |
| Full Load | 10200W |
| Maximum Main Load | 10200W |
| Maximum Second Load(Battery mode) | 3400W |
| Main Load Cut-Off Voltage | 44VDC |
| Main Load Return Voltage | 52VDC |
| OFF-GRID OPERATION | |
| AC INPUT | |
| AC Start-up Voltage/Auto Restart Voltage | 120-140VAC/180VAC |
| Acceptable Input Voltage Range | 90-280VAC or 170-280VAC |
| Maximum AC Input Current | 50A |
| Nominal operating frequency | 50/60Hz |
| Surge Power | 20400W |
| PV INPUT(DC) | |
| Maximum DC Voltage | 500VDC |
| MPPT Voltage Range | 90VDC-450VDC |
| Number of MPPT Trackers/Maximum Input Current | 2/18A |
| BATTERY MODE OUTPUT (AC) | |
| Nominal Output Voltage | 220/230/240VAC |
| Output Waveform | Pure sine wave |
| Efficiency(DC to AC) | 94% |
| BATTERY & CHARGER | |
| Nominal DC Voltage | 48VDC |
| Maximum Solar Charging Current | 160A |
| Maximum AC Charging Current | 140A |
| GENERAL | |
| PHYSICAL | |
| Dimension, D X W X H(mm) | 500*390*130 |
| Cartoon Dimension, D X W X H(mm) | 588*463*205 |
| Net Weight(kgs) | 14.5 |
| Gross Weight(kgs) | 16 |
| INTERFACE | |
| Communication Port | RS232/WIFI/GPRS/LITHIUM |
| BATTERY |
