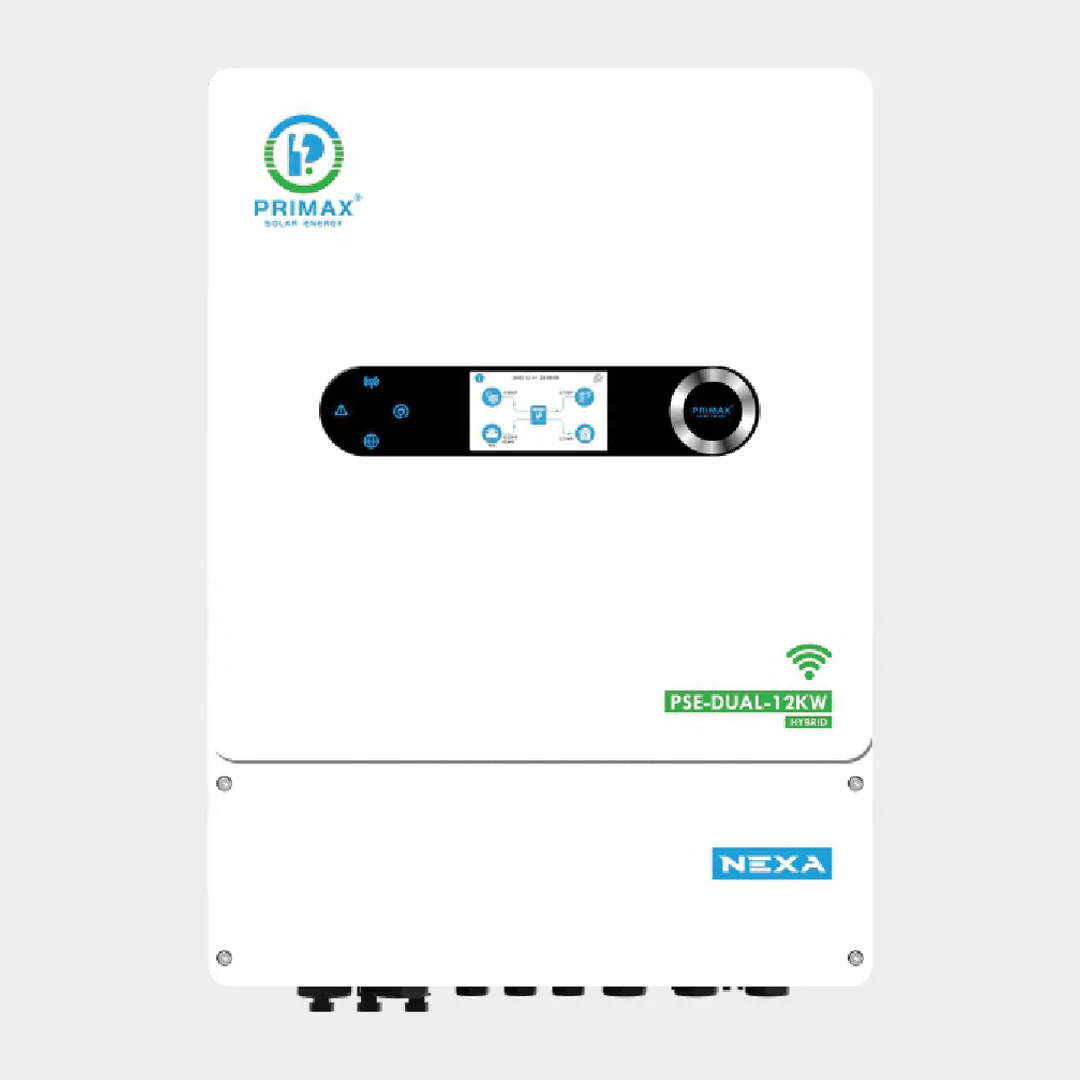

PRIMAX NEXA PSE-DUAL-12KW Hybrid Solar Inverter
A high-performance hybrid solar inverter designed for large-scale solar energy systems. Equipped with advanced features, it delivers exceptional efficiency, reliability, and versatility for demanding energy requirements.
Key Features
- Massive DC Input Power: Handles up to 18,000W for robust solar energy input.
- High Input Voltage Capacity: Maximum DC input voltage of 1000V, with a wide MPPT range of 150-800V.
- Dual MPPT: Two independent Maximum Power Point Tracking units for optimized solar panel performance.
- Starting Voltage: Activates at 150V for quick and efficient power generation.
- Powerful Output: Rated output power of 12,000W with a maximum output current of 27A.
- Battery Compatibility: Supports both Lithium and Lead Acid batteries; rated at 48V.
- Advanced Battery Management: Maximum charge/discharge current of 120A for enhanced performance and longevity.
- BMS Communication: Features CAN/RS485 for seamless integration with Battery Management Systems.
- Durable and Spacious Design: Dimensions of 475 x 683 x 256 mm and a weight of 35 kg, built for heavy-duty use.
SPECIFICATIONS
| PV INPUT | PSE-DUAL-12KW |
| Max. DC input power [W] | 18000 |
| Max. DC input voltage [V] | 1000 |
| MPPT operating voltage range [V] | 150-800 |
| Starting voltage [V] 33 | 150 |
| Max. input current [A] | 36/18 |
| Number of MPP trackers. | 2 |
| Strings per MPP tracker | 2/1 |
| AC OUTPUT (GRID) | |
| Rated output power [W] | 12000 |
| Max. output apparent power [VA] | 13200 |
| Rated output voltage [V] | 400 |
| Rated output frequency [Hz] | 50/60 |
| Max. output current [A] | 20.0 |
| Output power factor | -0.8 leading +0.8 lagging |
| AC OUTPUT (TWO BACKUP) | |
| Full Max. output power [W] | 12000 |
| Rated output voltage [V] | 400(±2%) |
| Rated output frequency [Hz] | 50/60 (±0.2%) |
| Backup 1 Max. output power [W] | 12000 |
| Backup2 Max. output power [W] | 12000 |
| Output Power Factor(off grid) | -0.8 leading +0.8 lagging |
| Output Current Harmonic Distortion | THD 3% (Nonlinear load); THD<1.5% (Linear load) |
| Max. output current. [A] | 20 |
| BATTERY PARAMETERS | |
| Battery type | Lithium or lead acid battery |
| Rated battery voltage. [V] | 48 |
| Voltage range [V] | 44-60 |
| Max. charge/discharge current [A] | 250 |
| EFFICIENCY | |
| Max. efficiency (PV) | 98% |
| Max. efficiency (Battery) | 94.5% |
| European efficiency | 97.5% |
| PROTECTION | |
| DC reverse-polarity protection | Yes |
| Short circuit protection | Yes |
| Output over current protection | Yes |
| Output over voltage protection | Yes |
| Insulation resistance monitoring | Yes |
| Residual current detection | Yes |
| Surge protection | Yes |
| Grid monitoring | Yes |
| Islanding protection | Yes |
| Temperature protection | Yes |
| Integrated DC switch | Yes |
| OTHERS | |
| Operating temperature range [C] | -25-60 |
| Storage temperature range [C] | -30-65 |
| Humidity range | 0-95% |
| Operating altitude [m] | ≤4000 |
| Topology | HF isolation (Battery side) |
| Cooling method | Natural |
| Noise [db] | <25 |
| Weight [kg] | 35 |
| Size (WXHXD) [mm] | 475×683×256 |
| STANDARD | |
| FN62109-1/2 IEC62109-1/2 EMC61000 EN50549 IEC61727 JFC62116 IEC61683 VDE 4105/0124 |
Perfect for commercial and industrial applications, the PSE-DUAL-12KW offers a dependable and efficient solution for large-scale energy systems.
