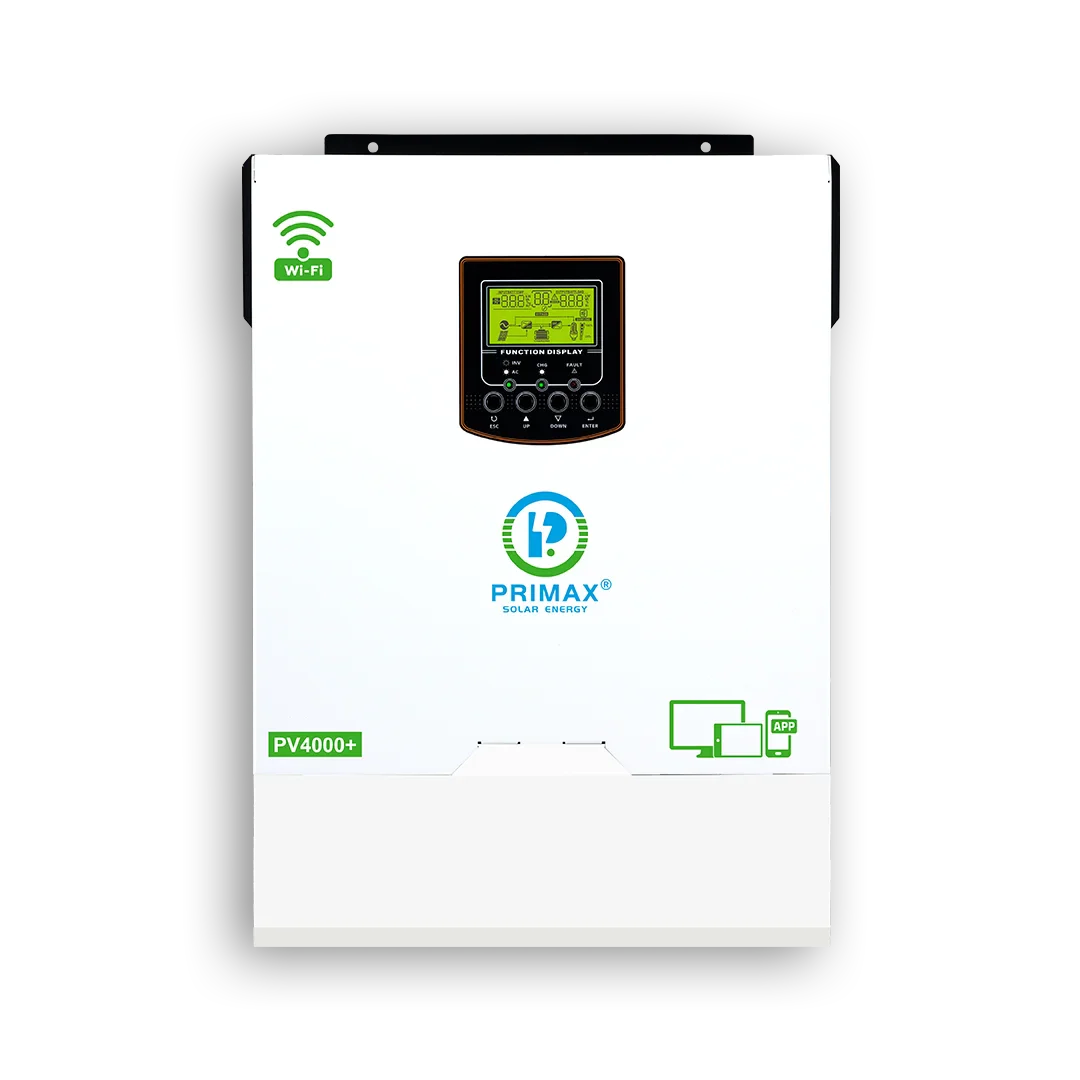

PRIMAX GALAXY PV4000+ Hybrid Solar Inverter 3KW
A reliable and efficient hybrid solar inverter designed for residential and small commercial systems. Featuring advanced energy management capabilities, this inverter ensures optimal performance and long-term durability.
Key Features
- Pure Sine Wave Output: Provides clean and stable power suitable for sensitive devices.
- Wide PV Input Voltage Range: Operates within a voltage range of 60VDC ~ 400VDC, compatible with various solar panels.
- Maximum PV Input: Handles up to 4,000W of solar power input for efficient energy conversion.
- Battery Independent Design: Can operate without a battery, offering a cost-effective solution for users who don’t need energy storage.
- Battery Equalization Function: Optimizes battery performance and extends battery life by balancing cell voltage.
- Maximum Charging Current: Supports up to 100A for fast and efficient battery charging.
- Durable Design: Built-in anti-dust kit ensures reliable performance in harsh environments.
- Maximum AC Output: Delivers up to 3,000W of AC power, suitable for standard household and small commercial applications.
- BMS Communication Port: Reserved communication port for Battery Management System (BMS) integration.
The PRIMAX GALAXY PV4000+ is an ideal solution for those seeking reliable, cost-effective, and efficient solar power systems with or without energy storage.
| RATED POWER | 3000VA/3000W |
| INPUT | |
| Voltage | 230VAC |
| Selectable Voltage Range | 170¬280VAC (For Personal Computers) ; 90¬280VAC (For Home Appliances) |
| Frequency Range | 50Hz/60Hz(Auto Sensing) |
| OUTPUT | |
| AC Voltage Regulation (Batt. Mode) | 230VAC+-5% |
| Surge Power | 6000VA |
| Efficiency (Peak) | 93% |
| Transfer Time | 10ms (For Personal Computers) 20ms (For Home Appliances) |
| Waveform | Pure Sine Wave |
| BATTERY | |
| Battery Voltage | 24V DC |
| Floating Charge Voltage | 27V DC |
| Overcharge Protection | 32V DC |
| SOLAR CHARGER & AC CHARGER | |
| Solar Charger Type | MPPT |
| Maximum PV Array Open Circuit Voltage | 450V DC |
| Maximum PV Array Power | 4000W |
| MPPT Range@ Operating Voltage | 60¬400VDC |
| Maximum Solar Charge Current | 100A |
| Maximum AC Charge Current | 800A |
| Maximum Charge Current | 100A |
| PHYSICAL | |
| Dimension D*W*H(mm) Net Weight (Kgs) | 110*288*390 7.2 |
| Communication Interface | RS232/RS485 |
| OPERATING ENVIRONMENT | |
| Humidity | 0% to 90% Relative Humidity (Non-Condensing) |
| Operating Temperature | -10¬50C |
| Storage Temperature | -15¬60C |
