Description

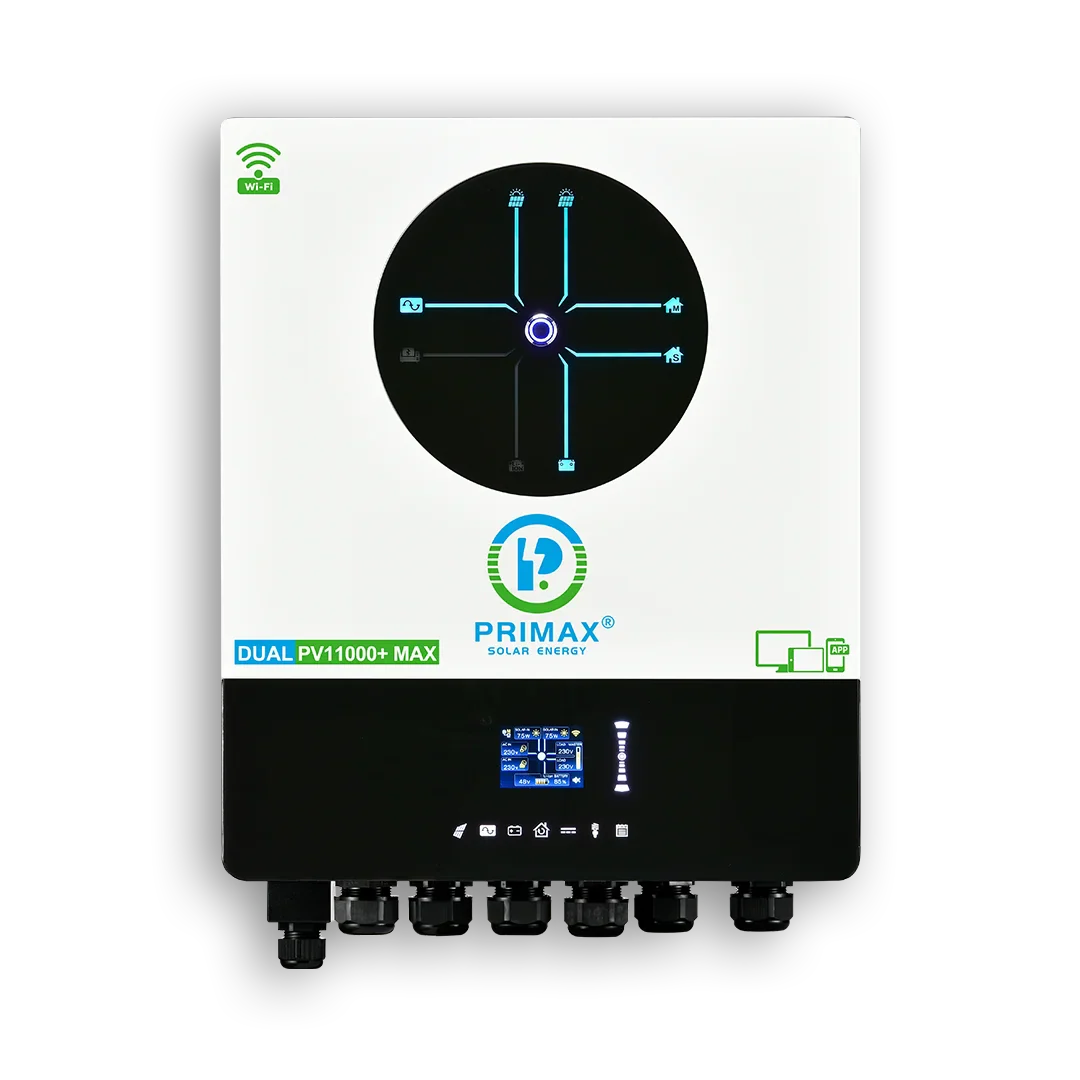

PRIMAX GALAXY PV11000+ MAX Hybrid Solar Inverter 8KW
A top-tier hybrid solar inverter designed for large-scale residential and commercial applications. Equipped with high power capacity, smart load management, and advanced features, this inverter ensures optimal performance and flexibility.
Key Features
- Dual Outputs: Supports smart load management to efficiently distribute power across multiple systems.
- High PV Input Capacity: Handles up to 11,000W (5,500W x 2) with a maximum input current of 40A for powerful solar energy intake.
- Wide PV Input Range: Operates efficiently within a voltage range of 90V~450V DC for versatile solar panel compatibility.
- RGB Status Indication: Customizable RGB lights for clear status notifications.
- Built-in Wi-Fi: Mobile monitoring via an Android/iOS app for remote system management.
- USB On-the-Go: Supports USB connectivity for easy data access and updates.
- Comprehensive Communication Options: Includes USB, RS232, RS485, Wi-Fi, Dry-contact, and optional support for GFCI, Rapid Shutdown, and AFCI detection.
- Maximum Charging Current: Supports up to 120A for fast, efficient battery charging.
- Battery-Independent Design: Can operate without batteries, offering a cost-effective solution for users who don’t require energy storage.
- Grid and Generator Compatibility: Compatible with utility mains or generator inputs for added flexibility.
- Feed-in to the Grid with Backup: Allows integration with the grid while maintaining backup storage for critical loads.
- Durable Design: Built-in anti-dust kit for reliable performance in harsh environments.
- Parallel Operation: Expandable with parallel operation of up to 6 units for higher energy output.
- Maximum AC Output: Delivers an impressive 8,000W of AC power for large-scale applications.
The PRIMAX GALAXY PV11000+ MAX offers a powerful, scalable, and flexible energy solution for high-demand applications, combining cutting-edge technology with reliability and efficiency.
| RATED POWER PHASE | 8000V/8000W 1- Phase In / 1- Phase Out |
| INPUT | |
| Voltage | 230VAC |
| Selectable Voltage Range | 170-280 VAC (For Personal Computers) 90-280 VAC (For Home Appliances) |
| Frequency Range | 50Hz/60Hz(Auto Sensing) |
| OUTPUT | |
| AC Voltage Regulation (Batt. Mode) | 230VAC+-5% |
| Surge Power | 16000VA |
| Efficiency (Peak) | 93% |
| Transfer Time | 10ms (For Personal Computers) 20ms (For Home Appliances) |
| Waveform | Pure Sine Wave |
| BATTERY | |
| Battery Voltage | 48VDC |
| Floating Charge Voltage | 54VDC |
| Overcharge Protection | 63VDC |
| SOLAR CHARGER & AC CHARGER | |
| Solar Charger Type | MPPT |
| Maximum PV Array Open Circuit Voltage | 500VDC |
| Maximum PV Array Power | 11000W (5500W x 2) |
| MPPT Range@ Operating Voltage Maximum PV Input Current | 90 ~ 450 VDC 27A x 2 (MAX 40A) |
| Maximum Solar Charge Current | 150A |
| Maximum AC Charge Current | 120A |
| Maximum Charge Current | 150A |
| PHYSICAL | |
| Dimension D*W*H(mm) Net Weight (Kgs) | 145 x 438 x 553.6 18.4 |
| Communication Interface | USB/RS232/RS485/WiFi/Dry-contact/BTS Support optional GFCI, Rapid shutdown, AFCI detection |
| OPERATING ENVIRONMENT | |
| Humidity | 5% to 95% Relative Humidity(Non-condensing) |
| Operating Temperature | -10°C to 50°C |
| Storage Temperature | -10°C to 60°C |
| STANDARD Compliance Safety | CE |
