Description

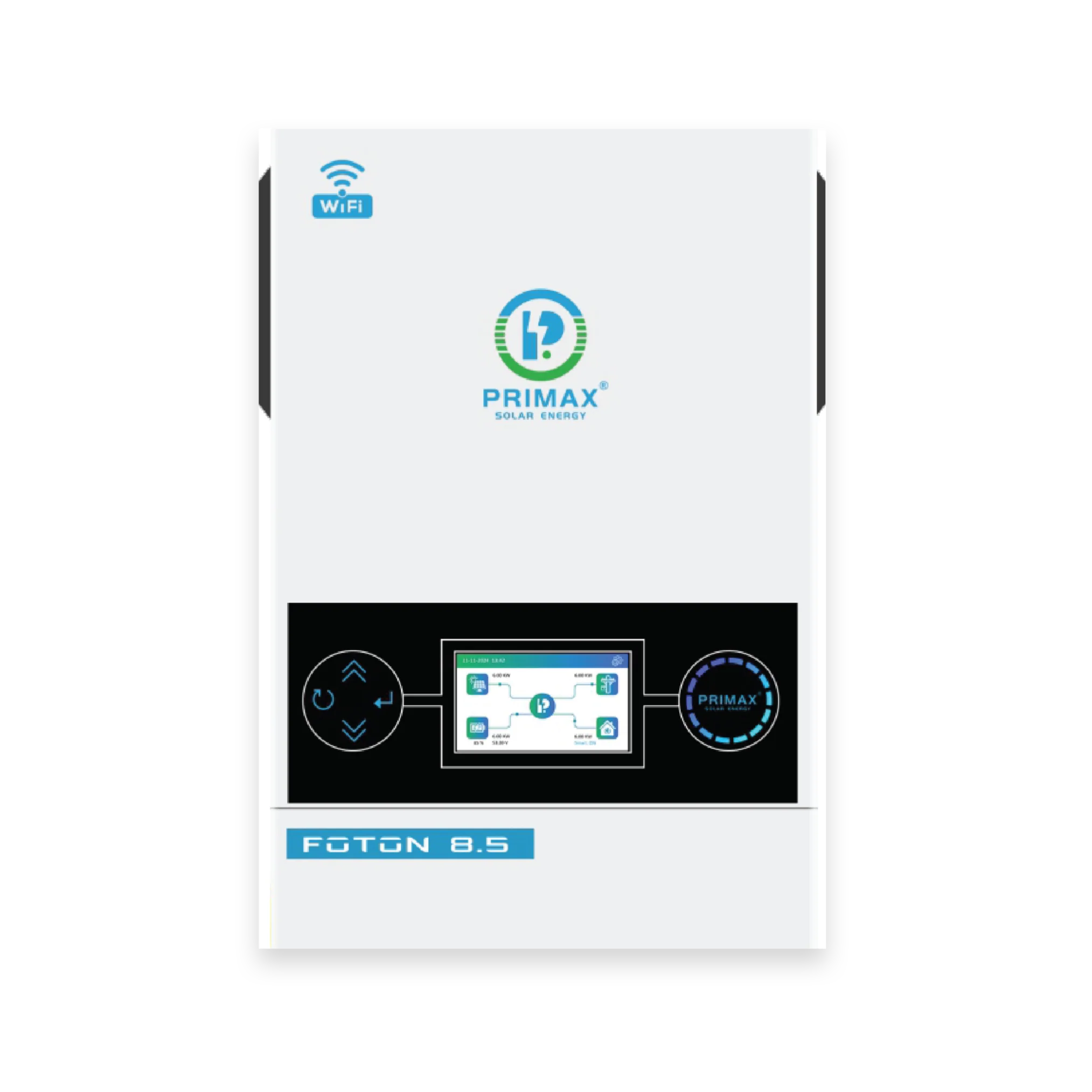

The Primax Foton 8.5 Hybrid Solar Inverter is a high-performance, versatile solution designed to optimize solar energy usage for homes and businesses. Featuring a 8500W output with pure sine wave technology, this inverter supports enhanced power under PV mode and works seamlessly with or without a battery. Equipped with a touch LCD screen for intuitive operation, Wi-Fi monitoring, and OTA firmware updates, it offers convenience and flexibility. The inverter supports dual output, BMS compatibility with lithium batteries, and an RGB atmosphere lights indicator for a modern touch. Ideal for efficient energy management with its advanced MPPT tracking and robust build, certified to IEC 62040-1 and IEC 62109-2 standards.
Features :
- Enhanced inverter output power under PV mode
- Touch LCD screen for intuitive parameter display and operation
- Dual output with pure sine wave
- 8500W high PV input, support for more panels
- Wi-Fi monitoring and settings
- Works with or without battery
- BMS support for lithium battery
- RGB atmosphere lights indicator
Product Specifications :
Download DataSheet
| Parameter | Specification |
|---|---|
| Model | Foton 8.5 |
| Phase | Single Phase |
| Nominal Voltage | 220/230/240VAC |
| Voltage Range | 90-280VAC ± 3% (Normal Mode) / 170-280VAC ± 3% (UPS Mode) |
| Frequency Range | 50Hz / 60Hz (Adaptive) |
| Rated Power | 6500W |
| PV Mode | 6500W |
| Battery Mode / AC Mode | 6200W |
| Output Voltage (AC) | 220/230/240VAC ± 5% |
| Dual Output Rated Power | Main Load: 5200W, Second Load: 6200W |
| Waveform | Pure Sine Wave |
| Transfer Time | 10ms for Computer, 20ms for Home Appliances |
| Peak Power | 12000VA |
| Overload (Battery Mode) | 105%-110% Load: 30s; 110%-200% Load: 40ms |
| Peak Efficiency | >94% |
| Output Voltage Regulation | 220/230/240VAC |
| Feed-in Grid Voltage | 175 – 265 VA |
| Feed-in Grid Frequency Range | 49.5-51.5Hz / 59-61Hz |
| Rated Feed-in Grid Current | 26.9A |
| Peak Efficiency (DC/AC) | 98% |
| Battery | |
| Rated Voltage | 48VDC (Adjustable) |
| Constant Voltage Charging Voltage | 56.4VDC (Adjustable) |
| Floating Charge Voltage | 54VDC (Adjustable) |
| PV Charging Method | Single MPPT |
| PV Input Power | 8500W |
| MPPT Tracking Range | 60-500VDC |
| Best PV Voltage Range | 360-430VDC |
| Max PV Input Voltage | 500VDC |
| Max PV Input Current | 27A |
| Max AC Charging Current | 120A |
| RS485 | For External WiFi / Monitoring & Update |
| Communication Port | Dry Contact |
| Operating Environment Temperature | -10°C to +50°C (Non-condensing) |
| Storage Temperature | -15°C to +60°C |
| Altitude | ≤1000m (derating above 1000m, up to 4000m) |
| Noise | ≤50dB |
| Certifications | IEC 62040-1, IEC 62109-2, CE, CB |
This hybrid solar inverter is perfect for those seeking a reliable, efficient, and smart energy solution.
