Description
The Jinko 705W N-Type Bifacial Solar Panel delivers ultra-high power output, advanced 20-busbar (20BB) technology, and efficient dual-sided energy generation — making it an excellent solution for commercial, industrial, and utility-scale solar projects where maximum energy yield and long-term reliability are essential.
Specifications

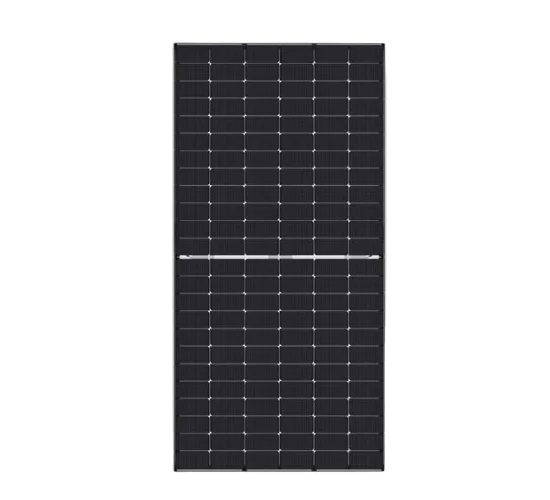

- Model: Jinko 705W N-Type Bifacial Solar Panel
- Power Output: 705W
- Cell Type: N-Type TOPCon Bifacial
- Cell Configuration: 132 / 144 Half-Cut Cells (module-dependent design)
- Busbar Technology: 20BB (Improved current collection & reduced power loss)
- Module Efficiency: Up to ~22.7%
- Bifacial Gain: Up to 25–30% additional energy from the rear side (site dependent)
- Operating Temperature: -40°C to +85°C
- Temperature Coefficient (Pmax): -0.29% / °C
- Front Glass: Dual 2.0mm Tempered Glass with Anti-Reflective Coating
- Frame Material: Anodized Aluminum Alloy
- Dimensions: Approx. 2384 × 1303 × 33 mm
- Weight: Around 38 kg
- Mechanical Load: 5400 Pa (Front) / 2400 Pa (Back)
- Protection Rating: IP68 Rated Junction Box
- Warranty: 12 Years Product Warranty / 30 Years Linear Power Warranty
