Description

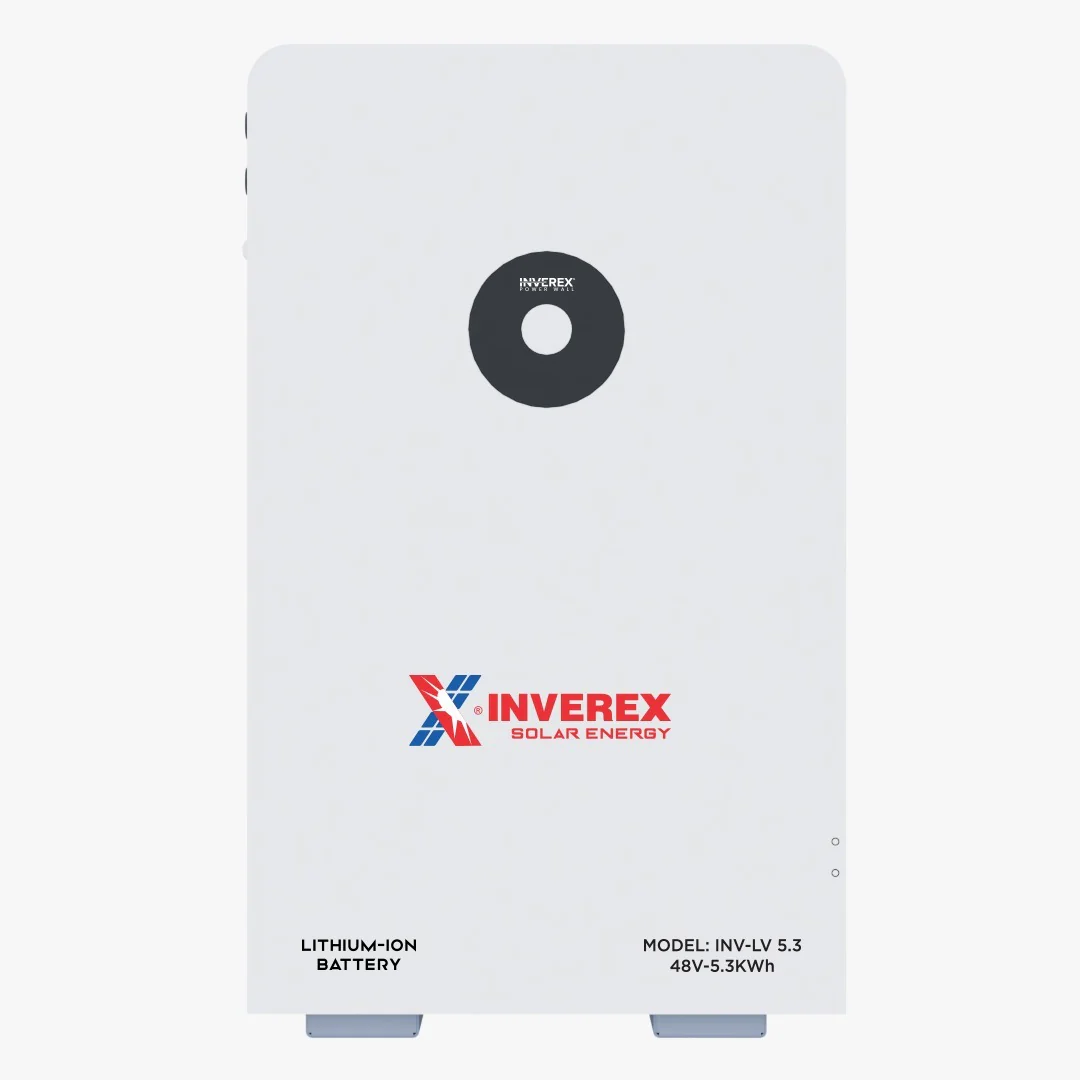

INV-LV5.3 Lithium-Ion Battery – 5.3kWh, IP65, Scalable Energy Storage
The INV-LV5.3 delivers 5.3kWh of clean, dependable power for residential solar systems and energy backups. This intelligent battery offers high efficiency, robust protection, and remote manageability, making it a scalable solution for mid-sized home energy demands.
Key Features
5.3kWh energy capacity for medium to large loads.
Compatible with all inverter brands.
Parallel up to 32 units for large system designs.
IP65 enclosure for outdoor protection.
High discharge capability with peak 2C performance.
Built-in BMS and circuit safety.
Remote monitoring and auto configuration.
Technical Specifications
| Category | Specification |
|---|---|
| Model | INV-LV5.3 |
| Battery Chemistry | LiFePO₄ |
| Nominal Energy | 5.3kWh |
| Nominal Voltage | 51.2V |
| Max Parallel Units | 32 |
| Current Limit | 10A |
| Max Charge Rate | 1C |
| Max Discharge Rate | 1.2C continuous / 2C (10s) |
| Operating Temperature | -20°C to 55°C |
| Protection Level | IP65 |
| Cooling | Natural |
| Cycle Life | ≥6000 @ 70% EOL |
| Communication | Remote monitoring supported |
| Networking | Auto (No DIP switch) |
| Safety Features | Intelligent BMS, Breaker |
| Warranty | 5 Years |
