Description

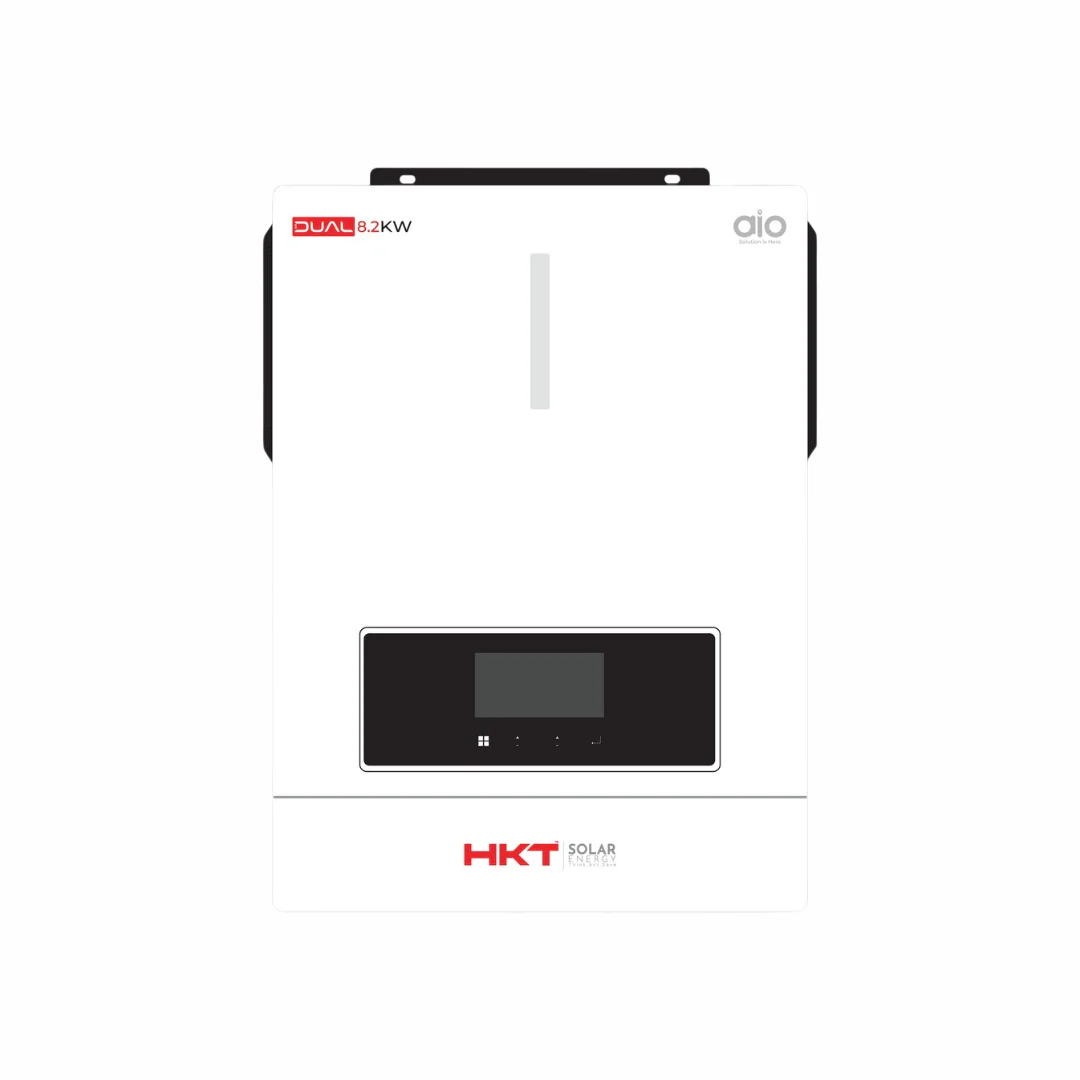

HKT Solar Energy AIO 8.2KW On/Off-Grid Pure Sine Wave Solar Inverter
The HKT AIO 8.2KW is a high-capacity on/off-grid solar inverter, delivering 9000W of PV power with a 1.0 power factor for efficient energy management. Equipped with battery-free operation, 120A MPPT solar charging, and dual load management, it is designed to meet the demands of both residential and commercial solar installations.
Key Features
- 9000W Pure Sine Wave Output – Ensures stable and efficient power for on-grid and off-grid applications.
- Battery-Free Operation – Supports direct solar-to-load functionality, reducing reliance on battery storage.
- Built-in 120A MPPT Solar Charger – Maximizes solar energy utilization with a maximum PV input of 6200W.
- High PV Input Voltage Range (60V – 500V DC) – Allows flexible solar panel configurations.
- WIFI & GPRS Support – Enables remote monitoring and control via iOS and Android devices.
- Built-in Anti-Dust Filter – Enhances durability and performance in harsh environments.
- One-Key Factory Reset – Restores default settings for quick troubleshooting and ease of use.
- Smart Battery Charge Design – Optimizes battery charging cycles to extend battery life.
- Automatic Lithium Battery Activation – Ensures seamless integration with lithium battery systems.
- Dual Output for Load Management – Supports small load and heavy load separation, improving energy efficiency.
Specifications
| Feature | 8.2 KW |
| General | |
| Phase | 1-Phase |
| Maximum PV Input Power | 8500W |
| Rated Output Power | 8200W |
| Maximum Solar Charging Current | 120A |
| Grid-Tie Operation | |
| PV Input (DC) | |
| Nominal DC Voltage / Maximum DC Voltage | 360V / 500V |
| Start-up Voltage / Initial Feeding Voltage | 90V / 120V |
| MPPT Voltage Range | 90-450VDC |
| Maximum Input Current | 2/18A |
| Grid Output (AC) | |
| Nominal Output Voltage | 220/230/240VAC |
| Output Voltage Range | 190-253VAC |
| Nominal Output Current | 44.3A |
| Power Factor | > 0.99 |
| Efficiency | |
| Maximum Conversion Efficiency (DC/AC) | 98% |
| Two Load Output Power | |
| Full Load | 8200W |
| Maximum Main Load | 8200W |
| Maximum Second Load (Battery Mode) | 3400W |
| Maximum Load Cut Off Voltage | 52VDC |
| Maximum Load Return Voltage | 54VDC |
| Off-Grid Operation | |
| AC Input | |
| AC Start-up Voltage / Auto Restart Voltage | 120-140VAC / 180VAC |
| Acceptable Input Voltage Range | 90-280VAC or 170-280VAC |
| Frequency Range | 59-61 ± 1 Hz |
| Maximum AC Input Current | 60A |
| PV INPUT (DC) | |
| Nominal DC Voltage/Maximum DC Voltage | 300/500VDC |
| MPPT Voltage Range | 90-450VDC |
| Maximum Input Current | 2/18A |
The HKT AIO 8.2KW is a powerful and intelligent solar inverter, ideal for users seeking a reliable and high-performance solution for their solar power needs.
