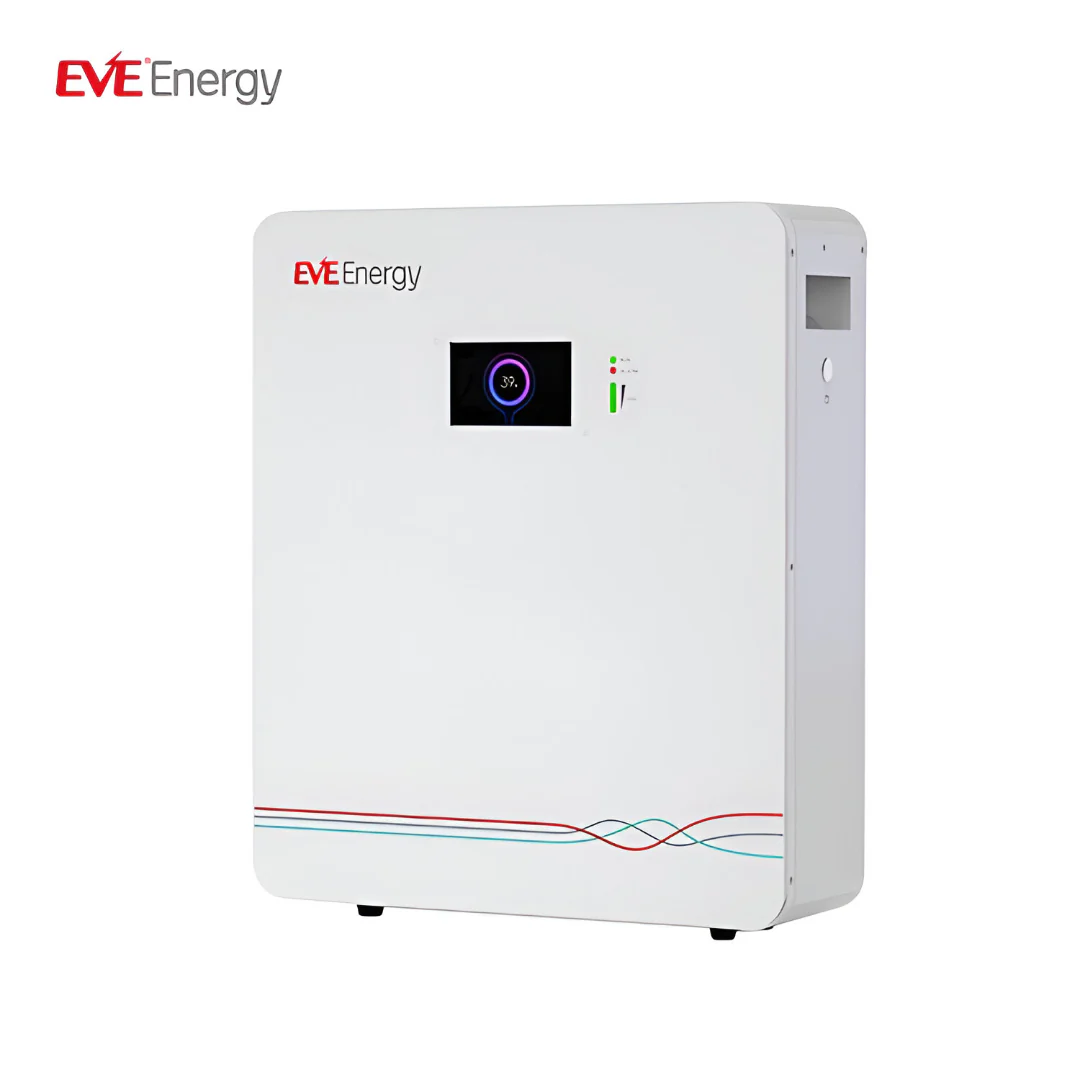

EVE-LVW-5.0 Residential Wall-Mounted Battery System – 5.12kWh LFP Energy Storage
Upgrade your home energy storage with the EVE-LVW-5.0, a high-performance lithium iron phosphate (LFP) wall-mounted battery system designed for residential solar applications. Combining safety, efficiency, and aesthetics, this slim energy storage solution provides reliable backup power and long-lasting performance.
Download Data Sheet
Key Features & Benefits
- Long-Life LFP Cells – Built with proprietary lithium iron phosphate cells, offering a 15-year design life and over 6000 cycles under proper use.
- Expandable Capacity – Connect up to 15 parallel systems for scalable energy storage.
- Smart Monitoring – Integrated Bluetooth and WiFi App for real-time battery status tracking.
| Parameter | Specification |
|---|---|
| Model | EVE-LVW-5.0 |
| Module Configuration | 1P16S |
| Rated Energy | 5.12 kWh |
| Rated Voltage | 51.2 V |
| Standard Current | 50 A |
| Max. Discharging Current | 100 A |
| Depth of Discharge (DOD) | 80% |
| Cycle Life | ≥ 6000 cycles (under specified use) |
| Design Service Life | 15 years |
| Weight | 50 kg (±2 kg) |
| Dimensions (H × W × D) | 560 × 480 × 137mm / 150mm |
| IP Rating | IP20 |
| Humidity | ≤ 70% (no condensation) |
| Communication | RS485 × 2 / CAN × 2 |
| Certifications | CE, UN38.3, IEC62619 (existing) UL1973, UL9540A (design compliant) |
| Matching Inverters | Megarevo, Goodwe, Growatt, Pylontech, Deye, Solis |
