Canadian 635W N-Type Bifacial

Description

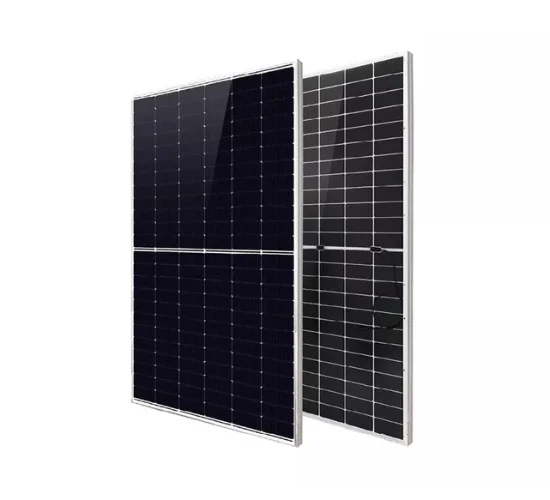

The Canadian 635W N-Type Bifacial TOPBiHiKu7 Bifacial Panel is engineered with advanced TOPCon cell technology, high-efficiency bifacial design, and dual-glass durability — delivering exceptional performance, superior reliability, and maximum yield for large-scale solar installations.

Specifications

• Model: Canadian Solar CS7L-635TB-AG
• Power Output: 635W
• Cell Type: N-Type TOPCon
• Cell Configuration: 120 Cells (10×6 × 2 strings)
• Module Efficiency: 22.4%
• Bifaciality: Up to 80% (±5%)
• Temperature Coefficient (Pmax): –0.29% / °C
• Operating Temperature Range: –40°C ~ +85°C
• Max System Voltage: 1500V DC
• Mechanical Load: 5400 Pa (Front) / 2400 Pa (Back)
• Module Dimensions: 2172 × 1303 × 33 mm
• Weight: 34.5 kg
• Warranty: 12-Year Product / 30-Year Linear Performance Warranty
