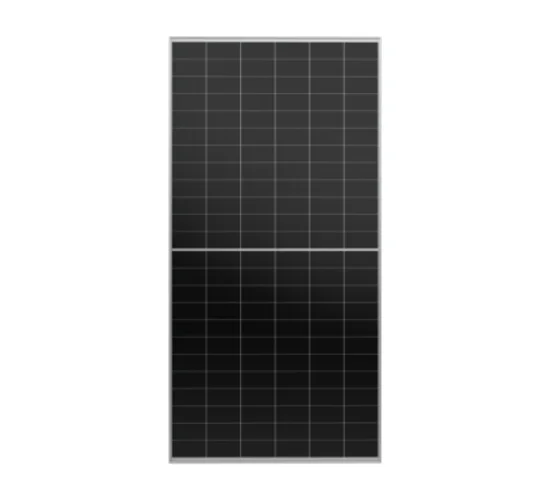

Aiko 640W Bifacial Solar Panel

Description

The Aiko 640W Bifacial Solar Panel is engineered with advanced ABC (All Back Contact) cell technology and dual-glass construction, enabling power generation from both the front and rear sides for maximum energy yield. With ultra-high efficiency, robust durability, and long-term reliability, it is designed for large-scale commercial and utility projects in Pakistan, delivering stable performance even under harsh conditions.

Specifications

• Brand: Aiko Solar
• Model: Aiko 640W ABC Bifacial
• Panel Type: Bifacial (Glass-Glass)
• Power Output: 640 Watts
• Module Efficiency: \~24.5%
• Cell Technology: N-Type ABC (All Back Contact)
• Cell Size & Count: 182mm, 144 half-cut cells
• Front Glass: 2.0mm AR-Coated Tempered Glass
• Rear Glass: 2.0mm Transparent Tempered Glass
• Dimensions: Approx. 2384 × 1134 × 30 mm
• Weight: \~34.0 kg
• Connector Type: MC4 Compatible
• Maximum System Voltage: 1500V DC
• Operating Temperature: -40°C to +85°C
• Bifaciality Factor: Up to 30% rear-side power gain
• Mechanical Load: 5400 Pa (front), 2400 Pa (rear)
• Temperature Coefficient (Pmax): -0.29% / °C
• Warranty: 15 Years Product, 30 Years Linear Performance Warranty
