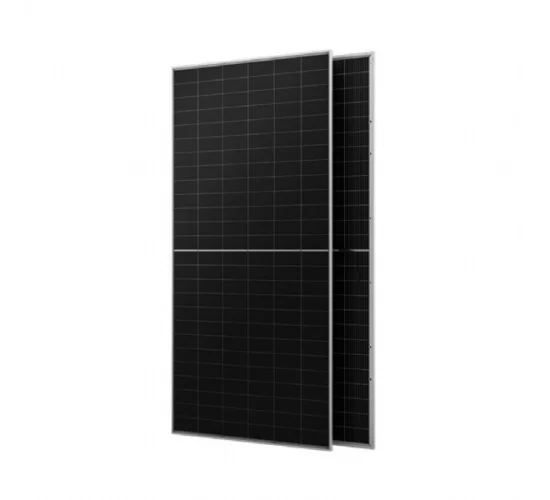

Aiko 625W Bifacial Solar Panel

Description

The Aiko 625W Bifacial Solar Panel is engineered with advanced ABC (All Back Contact) cell technology and dual-glass construction, enabling power generation from both the front and rear sides for higher overall yield. With ultra-high efficiency of around 23.7%, low temperature coefficient, and superior durability, it ensures maximum energy harvest and reduced system costs. Designed for large commercial rooftops, solar farms, and utility-scale projects in Pakistan, this bifacial module delivers stable, long-term performance with enhanced reliability even in harsh environments.

Specifications

• Brand: Aiko Solar
• Model: AIKO-A625-MAH72Dw
• Panel Type: Bifacial (Dual-glass)
• Power Output: 625 W (STC)
• Module Efficiency: ≈ 23.1%
• Cell Technology: N-Type ABC (All Back Contact)
• Cell Size & Count: 144 cells (6 × 24)
• Front Glass / Back Glass: Dual-glass, 2.0 mm + 2.0 mm coated semi-tempered
• Backsheet: N/A (dual-glass eliminates conventional backsheet)
• Dimensions: 2323 × 1134 × 30 mm
• Weight: ≈ 31.8 kg
• Connector Type: MC4 Compatible
• Maximum System Voltage: 1500 V DC
• Operating Temperature: – 40 °C to + 85 °C
• Mechanical Load:
• Front load: 5400 Pa
• Rear load: 2400 Pa
• Temperature Coefficient (Pmax): – 0.26% / °C
• Warranty: 15-year product warranty; 30-year linear performance warranty
